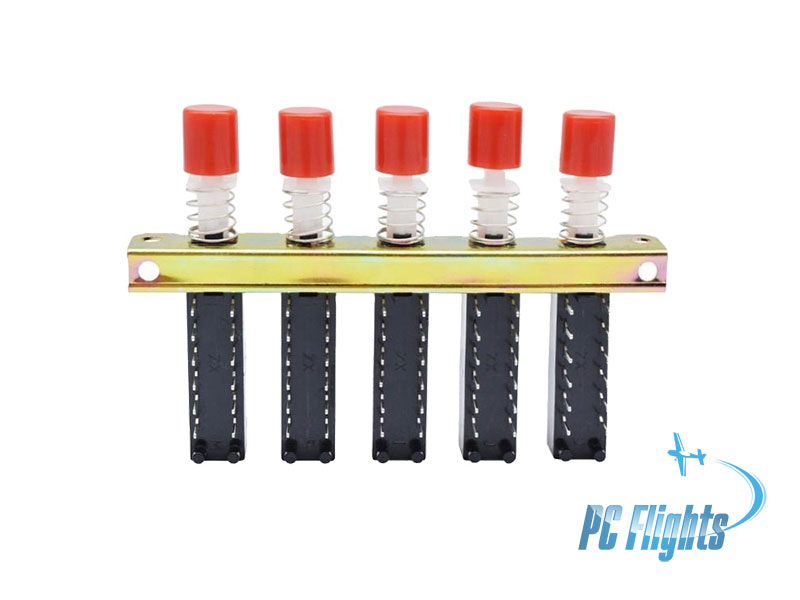

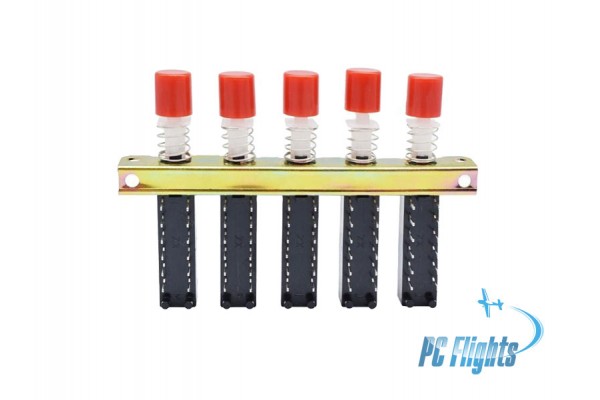

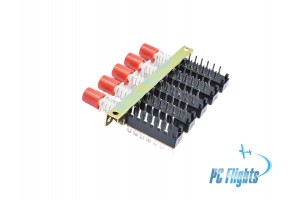

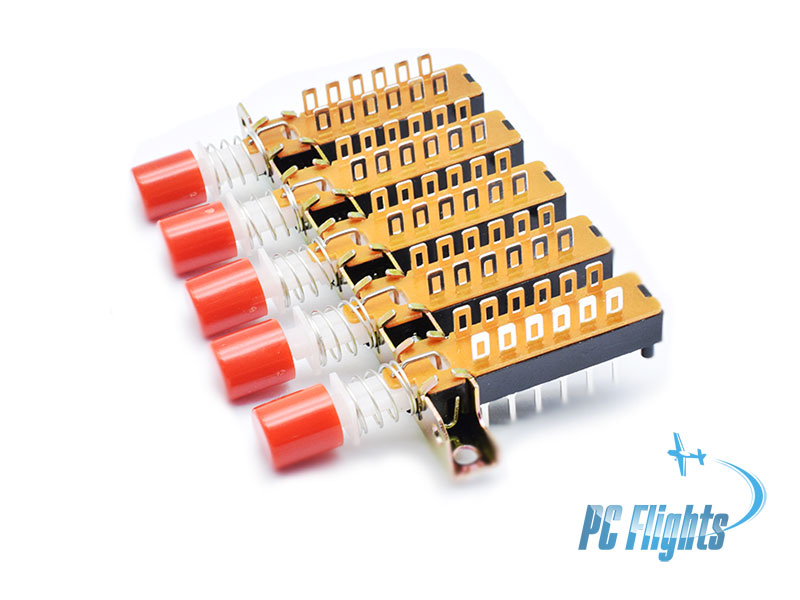

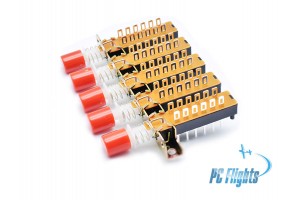

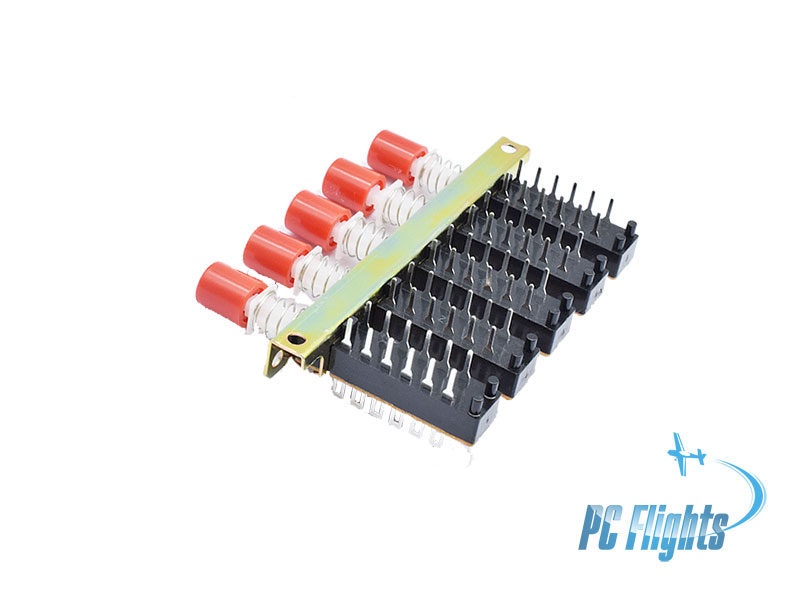

Interlock Push Button Switch Piano Type 12 Pin 5 Raw configuration is a common component in electronics and appliances, often used for multi-position control where only one button can be engaged at a time. Good for using in Displays Control Panel and Air Conditioning Control panel in F-14 "Tomcat" home cockpit.

Material: Plastic, Metal Switch
Operation: Interlock Contact
Configuration: 4PDT
Terminal Type: Straight Through Hole Pin
Quantity: 12 Each Pin

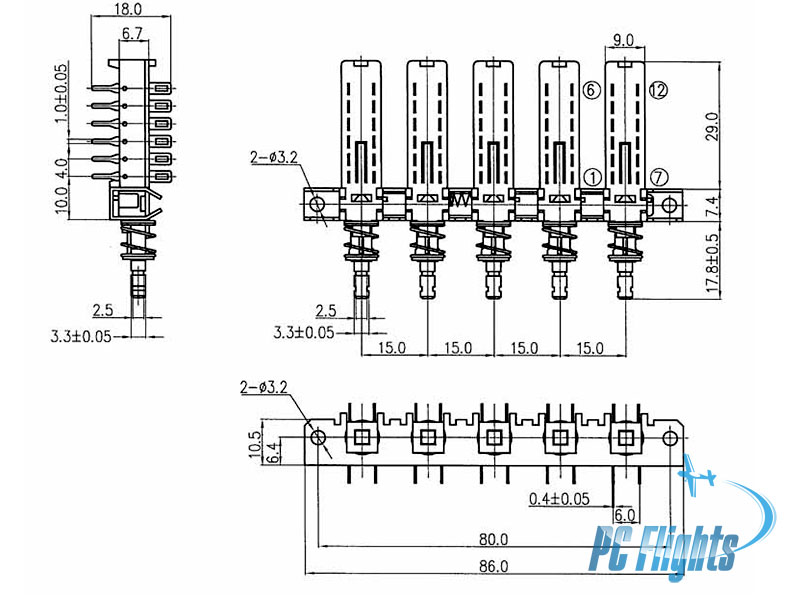

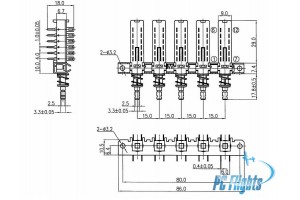

Pitch: 4mm Position
Quantity: 5 End Width: 9mm / 0.35-inch
Mounting Pillar Distance: 5mm / 0.20-inch
Mounting Hole Distance: 79.5mm / 3.13-inch
Each Cap Part Distance: 15mm / 0.59-inch
Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)
Overall Size: 55 x 87 x 18mm / 2.17-inch x 3.43-inch x 0.71-inch(L*W*H)
